ZYNQ-實現GPIO的中斷控制

FPGA and ICer 08-11 11:00 78 閱讀 1 贊 2 收藏 0 評論

學習內容

實現對GPIO的中斷控制程序，實現按鍵按下使得led燈閃亮一次，并結合前文的IIC工程，實現按鍵控制iic的數據采集。

開發環境

vivado 18.3 SDK PYNQ-Z2

中斷初始化的設置

對于熟悉ARM和32開發的人來說，中斷的概念對其并不陌生。下面我給出按鍵在32開發時候的初始化的流程：按鍵中斷編程步驟分析：

  1. 使能相應的時鐘
  2. 配置GPIO管腳為中斷功能
  3. 設置中斷優先級
  4. 使能相應的中斷
  5. 實現中斷服務程序

然后我給出ZYNQ的中斷初始化的設置流程：

  1. 初始化CPU異常功能
  2. 初始化中斷控制器
  3. 向CPU注冊異常處理回調函數
  4. 向中斷控制器中對應的中斷ID和中斷控制器相連接
  5. 設置中斷的類型
  6. 設置中斷的回調函數（用戶自己設置）
  7. 使能對應引腳的中斷
  8. 使能中斷控制器
  9. 使能異常處理功能

對比純arm開發和zynq的開發，我們可以大致看出，兩者在中斷初始化的過程中有很多相似的地方。因為zynq的功能比較多，比較復雜，在開發的時的配置過程也相對麻煩。

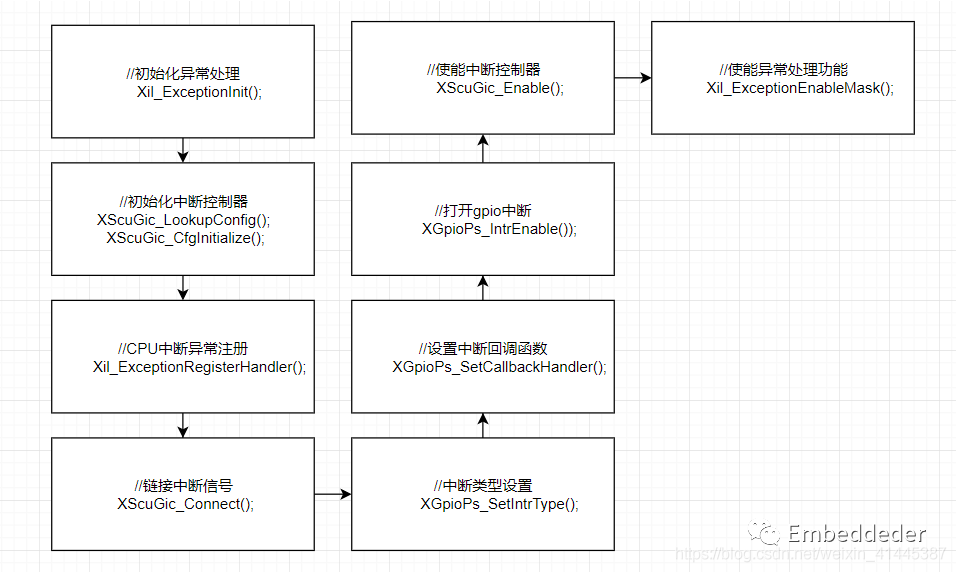

對應初始化過程中的每一步，我們可以找到對應的函數進行調用，具體過程如下：

硬件平臺搭建

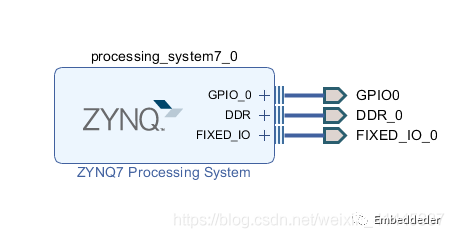

新建工程初始化我們需要用到了GPIO的資源引腳，具體的工程可以參考ZYNQ-利用PS引腳實現EMIO GPIO的驅動這里只給出搭建后的結果：（這里只進行設計了gpio可以實現對應按鍵控制燈閃爍）

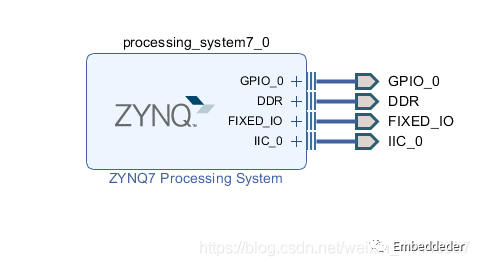

也可以同時把iic的模塊進行設計，用于按鍵實現采集控制

綜合生成bit流文件后，進行導出hardware，launch SDK

SDK軟件部分

新建工程后，在main中添加中斷初始化代碼：

#define SCUGIC_0_ID XPAR_PS7_SCUGIC_0_DEVICE_ID
#define GPIO_INTR_ID 52
#define SW_BANK_ID 2
static XScuGic GicPs;
static XScuGic_Config *XScuGic_Cfg;

int setupinterrupt(){
	int status;
	//初始化異常處理
	Xil_ExceptionInit();
	//初始化中斷控制器
	XScuGic_Cfg = XScuGic_LookupConfig(SCUGIC_0_ID);
	status = XScuGic_CfgInitialize(&GicPs,XScuGic_Cfg,XScuGic_Cfg->CpuBaseAddress);
	if( status != XST_SUCCESS){
			return XST_FAILURE;
	}
	//CPU中斷異常注冊
	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,(Xil_ExceptionHandler)XScuGic_InterruptHandler,&GicPs);
	//鏈接中斷信號
	status = XScuGic_Connect(&GicPs,GPIO_INTR_ID,(Xil_InterruptHandler)XGpioPs_IntrHandler,&GpioPs);
	if( status != XST_SUCCESS){
				return XST_FAILURE;
	}
	//中斷類型設置
	XGpioPs_SetIntrType(&GpioPs,SW_BANK_ID,0xffffffff,0xffffffff,0x00);
	//設置中斷回調函數
	XGpioPs_SetCallbackHandler(&GpioPs,(void *) &GpioPs, IntrHandler);
	//打開gpio中斷
	XGpioPs_IntrEnable(&GpioPs,SW_BANK_ID,1<<(BTN1-54));
	XScuGic_Enable(&GicPs,GPIO_INTR_ID);
	Xil_ExceptionEnableMask(XIL_EXCEPTION_IRQ);
	return XST_SUCCESS;
}

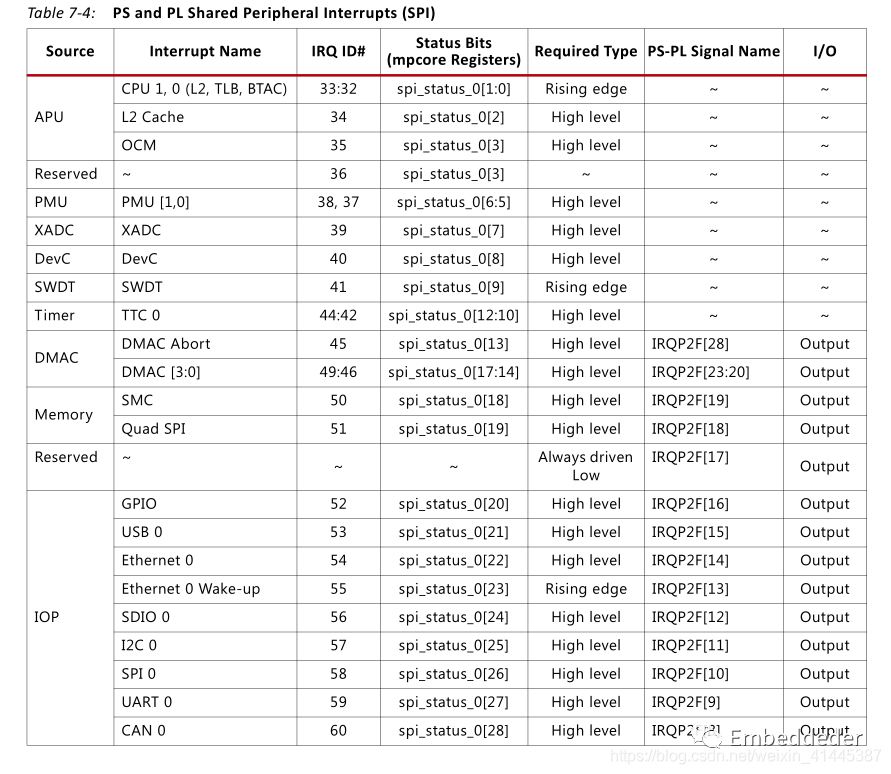

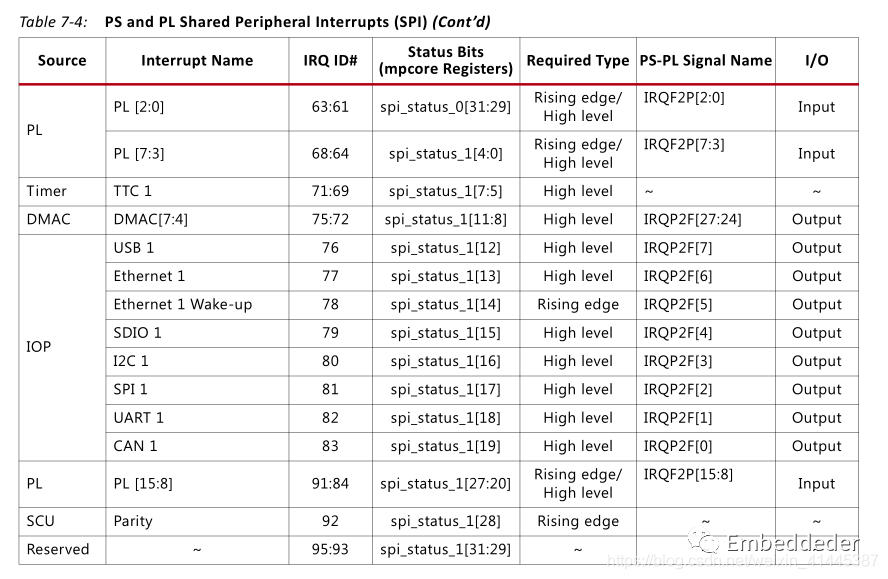

對于部分參數的查找進行簡單說明，具體函數的使用，可以參考system.mss中進行查找：==GPIO_INTR_ID== ：中斷配置時，要對中斷ID進行設置，否則對應不上配置的中斷

==SW_BANK_ID== ：因為我們BANK0和BANK1對應的是MIO的管腳是54個，我們聲明的管腳在BANK 2，所以我們就設置的BANK ID為2

按鍵控制led

#include
#include "platform.h"
#include "xil_printf.h"
#include "xgpiops.h"
#include "xparameters.h"
#include "xscugic.h"

#define GPIO_ID XPAR_PS7_GPIO_0_DEVICE_ID
#define SCUGIC_0_ID XPAR_PS7_SCUGIC_0_DEVICE_ID
#define GPIO_INTR_ID 52
#define SW_BANK_ID 2
#define LED0 54
#define LED1 55
#define BTN1 56
static XGpioPs GpioPs;
static XGpioPs_Config *XGpioPs_Cfg;
static XScuGic GicPs;
static XScuGic_Config *XScuGic_Cfg;
int initGpio();
int setupinterrupt();
void IntrHandler(void *CallBack,u32 Bank,u32 status);
int main()
{
	init_platform();
    initGpio();
    print("Hello World\n\r");
    setupinterrupt();
    while(1)
    {
    	XGpioPs_WritePin(&GpioPs,LED0,0);
    	XGpioPs_WritePin(&GpioPs,LED1,0);

    	usleep(1000);

    }
    cleanup_platform();
    return0;
}
int initGpio(){
	int status;
	XGpioPs_Cfg = XGpioPs_LookupConfig(GPIO_ID);
	status = XGpioPs_CfgInitialize(&GpioPs,XGpioPs_Cfg,XGpioPs_Cfg->BaseAddr);
	if( status != XST_SUCCESS){
		return XST_FAILURE;
	}
	XGpioPs_SetDirectionPin(&GpioPs,LED0,0x01);
	XGpioPs_SetOutputEnablePin(&GpioPs,LED0,0x01);
	XGpioPs_SetDirectionPin(&GpioPs,LED1,0x01);
	XGpioPs_SetOutputEnablePin(&GpioPs,LED1,0x01);
	XGpioPs_SetDirectionPin(&GpioPs,BTN1,0x00);
	XGpioPs_SetOutputEnablePin(&GpioPs,BTN1,0x00);
}
int setupinterrupt(){
	int status;
	//初始化異常處理
	Xil_ExceptionInit();
	//初始化中斷控制器
	XScuGic_Cfg = XScuGic_LookupConfig(SCUGIC_0_ID);
	status = XScuGic_CfgInitialize(&GicPs,XScuGic_Cfg,XScuGic_Cfg->CpuBaseAddress);
	if( status != XST_SUCCESS){
			return XST_FAILURE;
	}
	//CPU中斷異常注冊
	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,(Xil_ExceptionHandler)XScuGic_InterruptHandler,&GicPs);
	//鏈接中斷信號
	status = XScuGic_Connect(&GicPs,GPIO_INTR_ID,(Xil_InterruptHandler)XGpioPs_IntrHandler,&GpioPs);
	if( status != XST_SUCCESS){
				return XST_FAILURE;
	}
	//中斷類型設置
	XGpioPs_SetIntrType(&GpioPs,SW_BANK_ID,0xffffffff,0xffffffff,0x00);
	//設置中斷回調函數
	XGpioPs_SetCallbackHandler(&GpioPs,(void *) &GpioPs, IntrHandler);
	//打開gpio中斷
	XGpioPs_IntrEnable(&GpioPs,SW_BANK_ID,1<<(BTN1-54));
	XScuGic_Enable(&GicPs,GPIO_INTR_ID);
	Xil_ExceptionEnableMask(XIL_EXCEPTION_IRQ);
	return XST_SUCCESS;
}
void IntrHandler(void *CallBack,u32 Bank,u32 status){
	XGpioPs *GPIO_ptr;
	u32 read_val;
	GPIO_ptr = (XGpioPs *)CallBack;
	if(XGpioPs_ReadPin(GPIO_ptr,BTN1) == 1)
	{
		XGpioPs_WritePin(GPIO_ptr,LED0,1);
		XGpioPs_WritePin(GPIO_ptr,LED1,1);
		printf("%d\n",XGpioPs_ReadPin(&GpioPs,BTN1));
		usleep(1000000);
	}
}

按鍵控制數據采集

/*
 * helloworld.c: simple test application
 *
 * This application configures UART 16550 to baud rate 9600.
 * PS7 UART (Zynq) is not initialized by this application, since
 * bootrom/bsp configures it to baud rate 115200
 *
 * ------------------------------------------------
 * | UART TYPE   BAUD RATE                        |
 * ------------------------------------------------
 *   uartns550   9600
 *   uartlite    Configurable only in HW design
 *   ps7_uart    115200 (configured by bootrom/bsp)
 */

#include
#include "platform.h"
#include "xil_printf.h"
#include "xgpiops.h"
#include "xiicps.h"
#include "xparameters.h"
#include "xscugic.h"

#define GPIO_ID XPAR_PS7_GPIO_0_DEVICE_ID
#define SCUGIC_0_ID XPAR_PS7_SCUGIC_0_DEVICE_ID
#define I2C_0_DEVICE_ID XPAR_PS7_I2C_0_DEVICE_ID
#define I2C_0_CLK 100000
#define IIC_0_SALV_ADDR 0x23 //定義器件在IIC總線中的從地址,根據ALT  ADDRESS地址引腳不同修改
                              //ALT  ADDRESS引腳接地時地址為0x23
#define GPIO_INTR_ID 52
#define SW_BANK_ID 2
#define LED0 54
#define LED1 55
#define BTN1 56
//聲明結構體
static XGpioPs GpioPs;
static XGpioPs_Config *XGpioPs_Cfg;
static XScuGic GicPs;
static XScuGic_Config *XScuGic_Cfg;
// XIicPs* iicps;
static XIicPs iicps;
static XIicPs_Config * iicpscfgtr;
int status;
	double out=0;
	unsigned short tmp;
    unsignedchar Cmdon = 0x01;
	unsignedchar Cmdlight = 0x10;
	char temp[2];
int initGpio();
int setupinterrupt();
//初始化 iic
int InitIic(XIicPs *iips,XIicPs_Config *iiccfg);
void IntrHandler(void *CallBack,u32 Bank,u32 status);
int main()
{

	init_platform();
    initGpio();
    setupinterrupt();
    status=InitIic(&iicps,iicpscfgtr);
	if(status !=XST_SUCCESS){
		return XST_FAILURE;
	}
	//初始化
	status = XIicPs_MasterSendPolled(&iicps,&Cmdon,1,IIC_0_SALV_ADDR);
	if(status !=XST_SUCCESS){
		return XST_FAILURE;
	}
    usleep(10000);//延時10ms
    printf("init iic successful!\n");
    while(1)
    {
    	XGpioPs_WritePin(&GpioPs,LED0,0);
    	XGpioPs_WritePin(&GpioPs,LED1,0);

    	usleep(1000);

    }
    cleanup_platform();
    return0;
}
int initGpio(){
	int status;
	XGpioPs_Cfg = XGpioPs_LookupConfig(GPIO_ID);
	status = XGpioPs_CfgInitialize(&GpioPs,XGpioPs_Cfg,XGpioPs_Cfg->BaseAddr);
	if( status != XST_SUCCESS){
		return XST_FAILURE;
	}
	XGpioPs_SetDirectionPin(&GpioPs,LED0,0x01);
	XGpioPs_SetOutputEnablePin(&GpioPs,LED0,0x01);
	XGpioPs_SetDirectionPin(&GpioPs,LED1,0x01);
	XGpioPs_SetOutputEnablePin(&GpioPs,LED1,0x01);
	XGpioPs_SetDirectionPin(&GpioPs,BTN1,0x00);
	XGpioPs_SetOutputEnablePin(&GpioPs,BTN1,0x00);
}

int InitIic(XIicPs *iips,XIicPs_Config * iiccfg){
	int status;
	iiccfg = XIicPs_LookupConfig(I2C_0_DEVICE_ID);
	status = XIicPs_CfgInitialize(iips,iiccfg,iiccfg->BaseAddress);
	if(status !=XST_SUCCESS){
		return XST_FAILURE;
	}
	status = XIicPs_SelfTest(iips);
			if (status != XST_SUCCESS) {
				return XST_FAILURE;
			}
	status = XIicPs_SetSClk(iips,I2C_0_CLK);
	if(status !=XST_SUCCESS){
		return XST_FAILURE;
	}
	return0;
}
int setupinterrupt(){
	int status;
	//初始化異常處理
	Xil_ExceptionInit();
	//初始化中斷控制器
	XScuGic_Cfg = XScuGic_LookupConfig(SCUGIC_0_ID);
	status = XScuGic_CfgInitialize(&GicPs,XScuGic_Cfg,XScuGic_Cfg->CpuBaseAddress);
	if( status != XST_SUCCESS){
			return XST_FAILURE;
	}
	//CPU中斷異常注冊
	Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,(Xil_ExceptionHandler)XScuGic_InterruptHandler,&GicPs);
	//鏈接中斷信號
	status = XScuGic_Connect(&GicPs,GPIO_INTR_ID,(Xil_InterruptHandler)XGpioPs_IntrHandler,&GpioPs);
	if( status != XST_SUCCESS){
				return XST_FAILURE;
	}
	//中斷類型設置
	XGpioPs_SetIntrType(&GpioPs,SW_BANK_ID,0xffffffff,0xffffffff,0x00);
	//設置中斷回調函數
	XGpioPs_SetCallbackHandler(&GpioPs,(void *) &GpioPs, IntrHandler);
	//打開gpio中斷
	XGpioPs_IntrEnable(&GpioPs,SW_BANK_ID,1<<(BTN1-54));
	XScuGic_Enable(&GicPs,GPIO_INTR_ID);
	Xil_ExceptionEnableMask(XIL_EXCEPTION_IRQ);
	return XST_SUCCESS;
}
void IntrHandler(void *CallBack,u32 Bank,u32 status){
	XGpioPs *GPIO_ptr;
	u32 read_val;
	GPIO_ptr = (XGpioPs *)CallBack;
	if(XGpioPs_ReadPin(GPIO_ptr,BTN1) == 1)
	{
				XGpioPs_WritePin(&GpioPs,LED0,1);
				status = XIicPs_MasterSendPolled(&iicps,&Cmdon,1,IIC_0_SALV_ADDR);
			    if(status !=XST_SUCCESS){
				   return XST_FAILURE;
			    }
				status = XIicPs_MasterSendPolled(&iicps,&Cmdlight,1,IIC_0_SALV_ADDR);
				if(status !=XST_SUCCESS){
							return XST_FAILURE;
			    }
				usleep(180000);//延時180ms
				status = XIicPs_MasterRecvPolled(&iicps,&temp,2,IIC_0_SALV_ADDR);

				//串口檢測結果
				tmp = (temp[0]<<8)| temp[1];
				out = tmp/1.2;
				printf("light intensity : %.1f lx\n",out);
				usleep(1000000);
	}
}

運行效果
