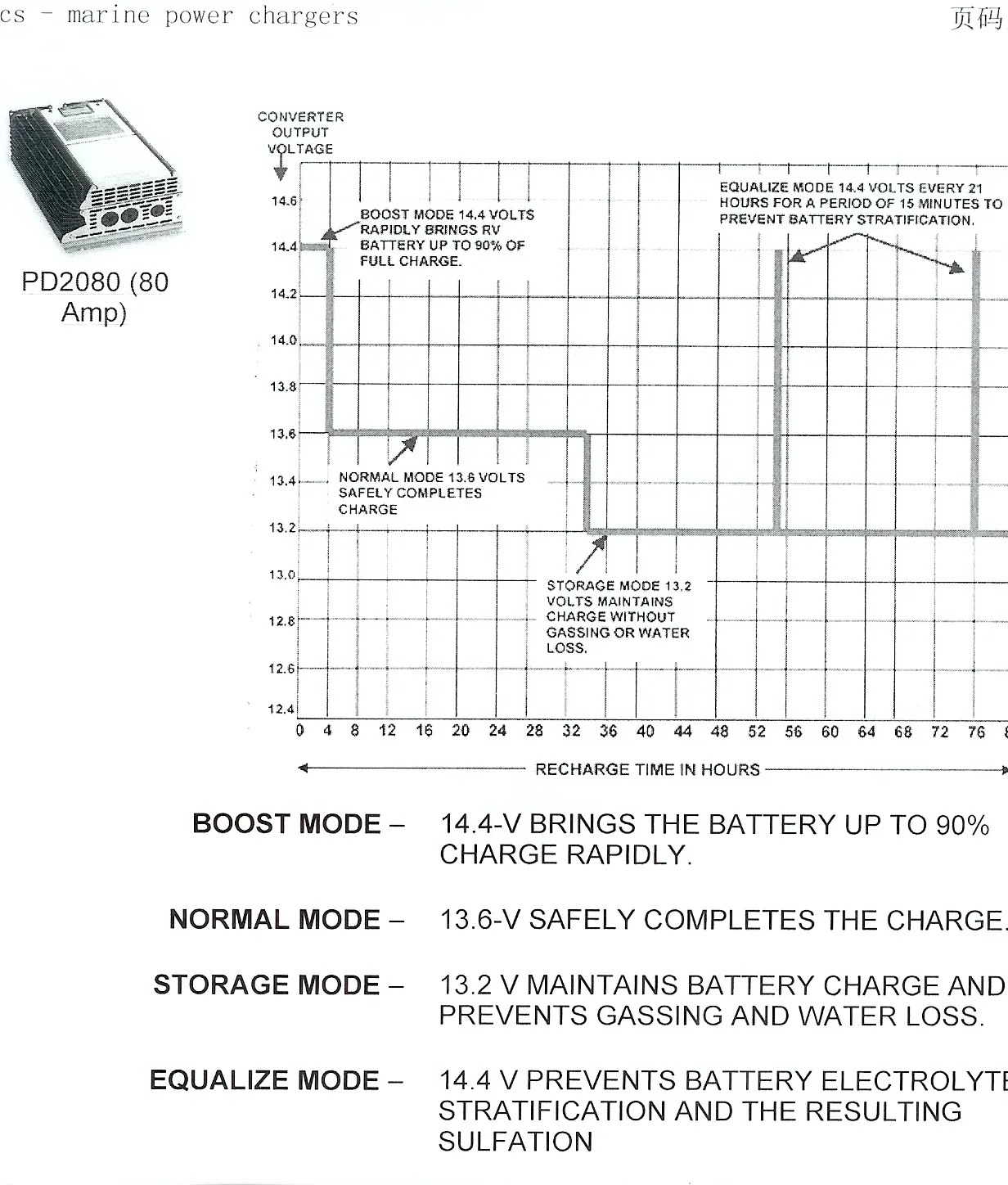

這是美國一家充電器的充電曲線,四級,貼出來供大家參考
全部回復(18)
正序查看
倒序查看
@wangmn
貼出來看看嘛.
這是一種具有脫硫功能的充電曲線,美國專利產品,臺灣一家公司仿制在美國銷售,結果吃了官司,賠了300萬美元,如果你要采用,注意知識產權!
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/47/1162540321.jpg');}" onmousewheel="return imgzoom(this);">

0
回復
@hjchk5338
這是一種具有脫硫功能的充電曲線,美國專利產品,臺灣一家公司仿制在美國銷售,結果吃了官司,賠了300萬美元,如果你要采用,注意知識產權![圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/47/1162540321.jpg');}"onmousewheel="returnimgzoom(this);">
從曲線上看,這應該是一個應用于不間斷電源的充電器曲線,其脫硫功能主要是后面每21小時有15分鐘的間歇充電脈沖實現的.
0
回復
@wangmn
從理論上來說,用單片機不難做,80A的電流是不是要用IGBT來控制充電脈沖.美國朋友沒有給你電路圖等其它可以參考的資料?

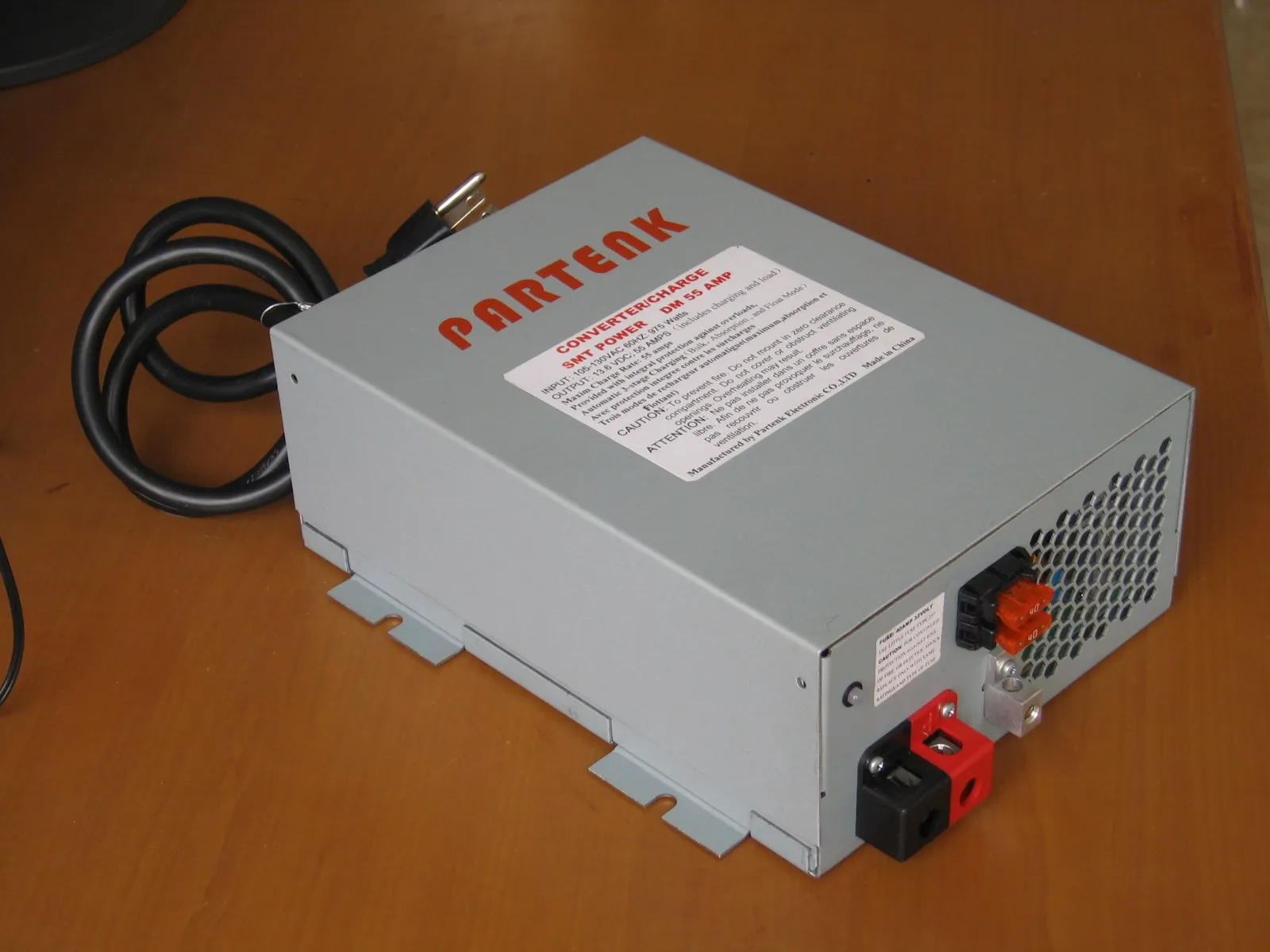

我們已經做好了一個55A的, 用PIC16F505,+UC3825BN,按UL458標準, EMC采用FCC-B,主要技術指標如下:
SMT POWER DM 55 CHARGERS
主要技術參數
Maximum Continuous DC Output Current 55AMPS
Maximum Continuous Input Power 880WATTS
Charge Mode 3 Stage
DC Output Voltage (Normal) 13.6 VDC±1%
DC Output Voltage (Boost) 14.4 VDC±1%
DC Output Voltage (Storage) 13.2 VDC±1%
Input Voltage 108-132VAC
Input Voltage Frequency 50-60HZ
Efficiency (Typical) >80%
Over Current Protection Point 58-60Ams
Reverse Battery Protection YES
Electronic Current Limiting (Short Circuit Protection) YES
Over Voltage Protection YES
Over Temperature Protection YES
Back UP Thermal Protection YES
Electronic Fan Control (Start@50℃,Stop@38℃) ON/OFF
Line Regulation <1.0%
Load Regulation <1.0%
Operating Temperature Range 0---50℃
Storage Temperature -20---+80℃
Hipot Voltage Test 1500V@INPUT TERMINALS
Dimensions 260x168x90mm3
Weight 3.06kg
Safety UL458
EMC Fcc Class B
我們想把它改成220V輸入的,不只在國內有沒有市場?
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/47/1162824834.jpg');}" onmousewheel="return imgzoom(this);">
SMT POWER DM 55 CHARGERS
主要技術參數
Maximum Continuous DC Output Current 55AMPS
Maximum Continuous Input Power 880WATTS
Charge Mode 3 Stage
DC Output Voltage (Normal) 13.6 VDC±1%
DC Output Voltage (Boost) 14.4 VDC±1%
DC Output Voltage (Storage) 13.2 VDC±1%
Input Voltage 108-132VAC
Input Voltage Frequency 50-60HZ
Efficiency (Typical) >80%
Over Current Protection Point 58-60Ams
Reverse Battery Protection YES
Electronic Current Limiting (Short Circuit Protection) YES
Over Voltage Protection YES
Over Temperature Protection YES
Back UP Thermal Protection YES
Electronic Fan Control (Start@50℃,Stop@38℃) ON/OFF
Line Regulation <1.0%
Load Regulation <1.0%
Operating Temperature Range 0---50℃
Storage Temperature -20---+80℃
Hipot Voltage Test 1500V@INPUT TERMINALS
Dimensions 260x168x90mm3
Weight 3.06kg
Safety UL458
EMC Fcc Class B
我們想把它改成220V輸入的,不只在國內有沒有市場?

0
回復
@wangmn
從理論上來說,用單片機不難做,80A的電流是不是要用IGBT來控制充電脈沖.美國朋友沒有給你電路圖等其它可以參考的資料?

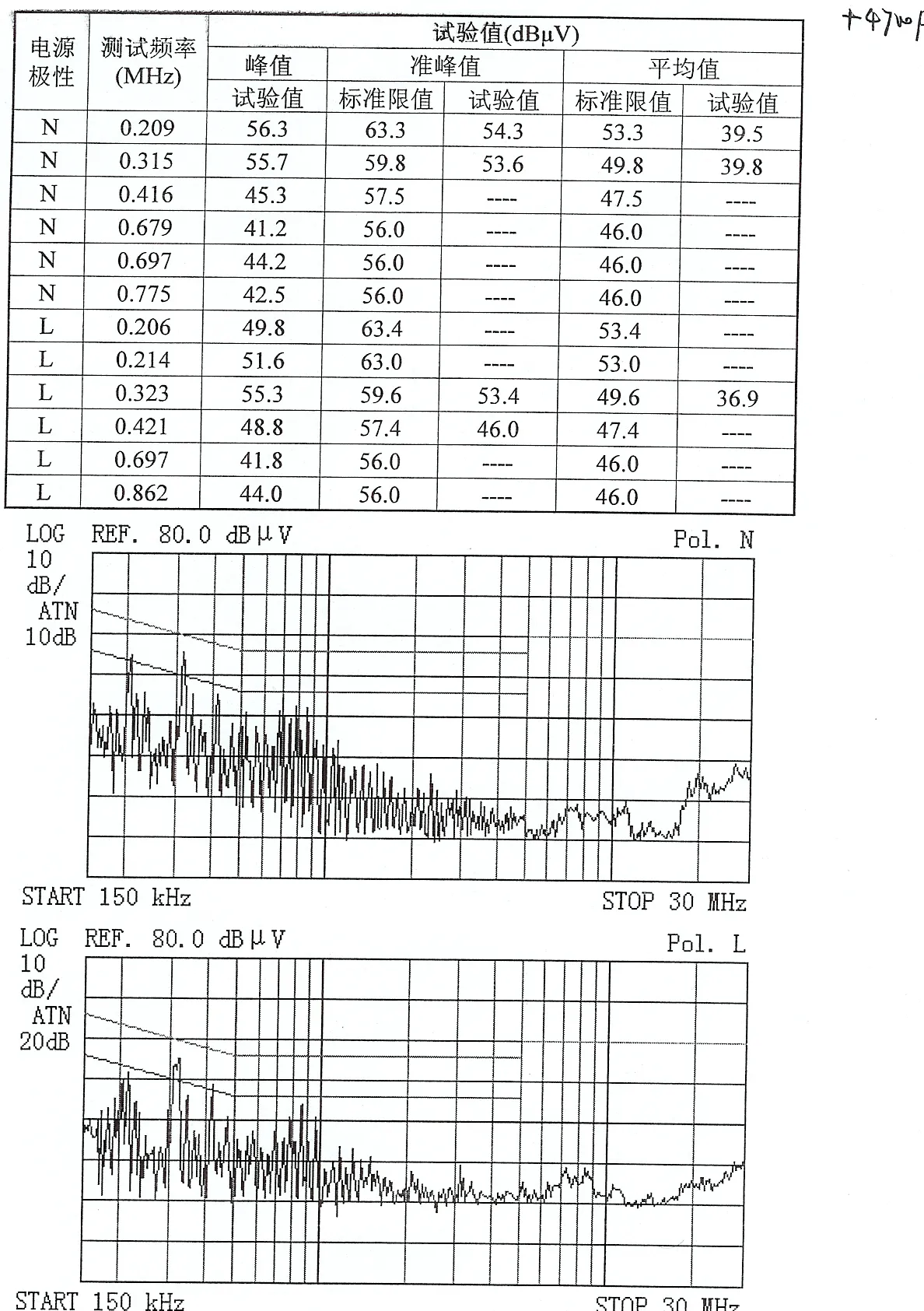

下面是產品EMC的傳導測試結果
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/47/1162825861.jpg');}" onmousewheel="return imgzoom(this);">

0
回復
@hjchk5338
下面是產品EMC的傳導測試結果[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/47/1162825861.jpg');}"onmousewheel="returnimgzoom(this);">
既然是RV車用,何不快到各大汽車廠攻關攻關.
有一個問題不明白,充電狀態是依時間轉換的?
有一個問題不明白,充電狀態是依時間轉換的?
