230W時波形,示波器上為MOS管G極波形,下為變壓器初級波形,
230W時波形,示波器上為MOS管G極波形,下為變壓器次級波形,
24V升160V 500W波形怪怪的!有圖!請教各位
電路是494+75N75+ETD44,變壓器是先繞初級4T*2 再繞次級是36T,請教各位,是PCB不好還是變壓器沒弄好呢?
230W時波形,示波器上為MOS管G極波形,下為變壓器初級波形,
230W時波形,示波器上為MOS管G極波形,下為變壓器次級波形,
230W時波形,示波器上為MOS管G極波形,下為變壓器初級波形,
230W時波形,示波器上為MOS管G極波形,下為變壓器次級波形,
全部回復(3)
正序查看
倒序查看

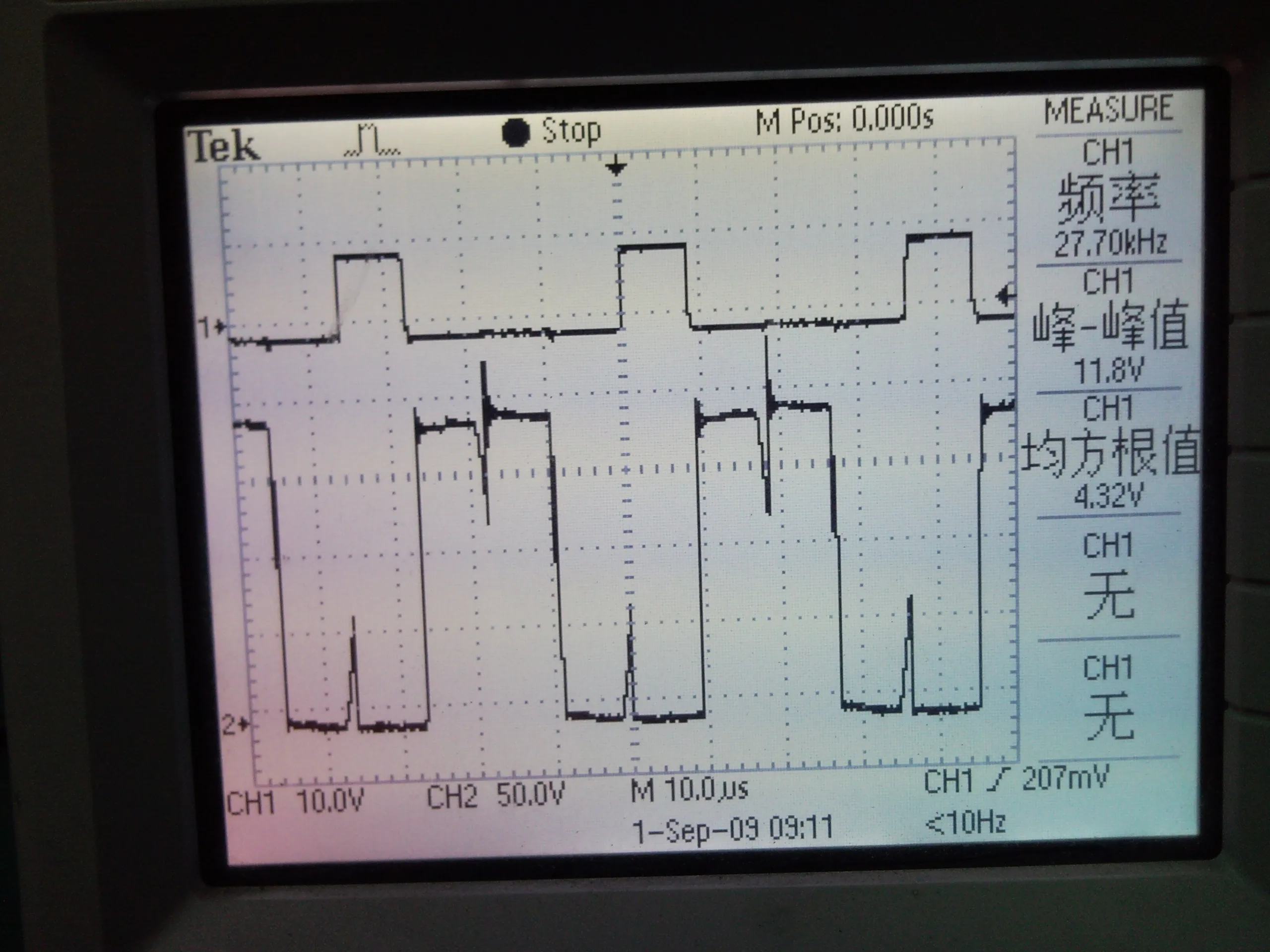

500w時波形,上是G極波形,下為次級波形,
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/81/2461591251768363.jpg');}" onmousewheel="return imgzoom(this);">

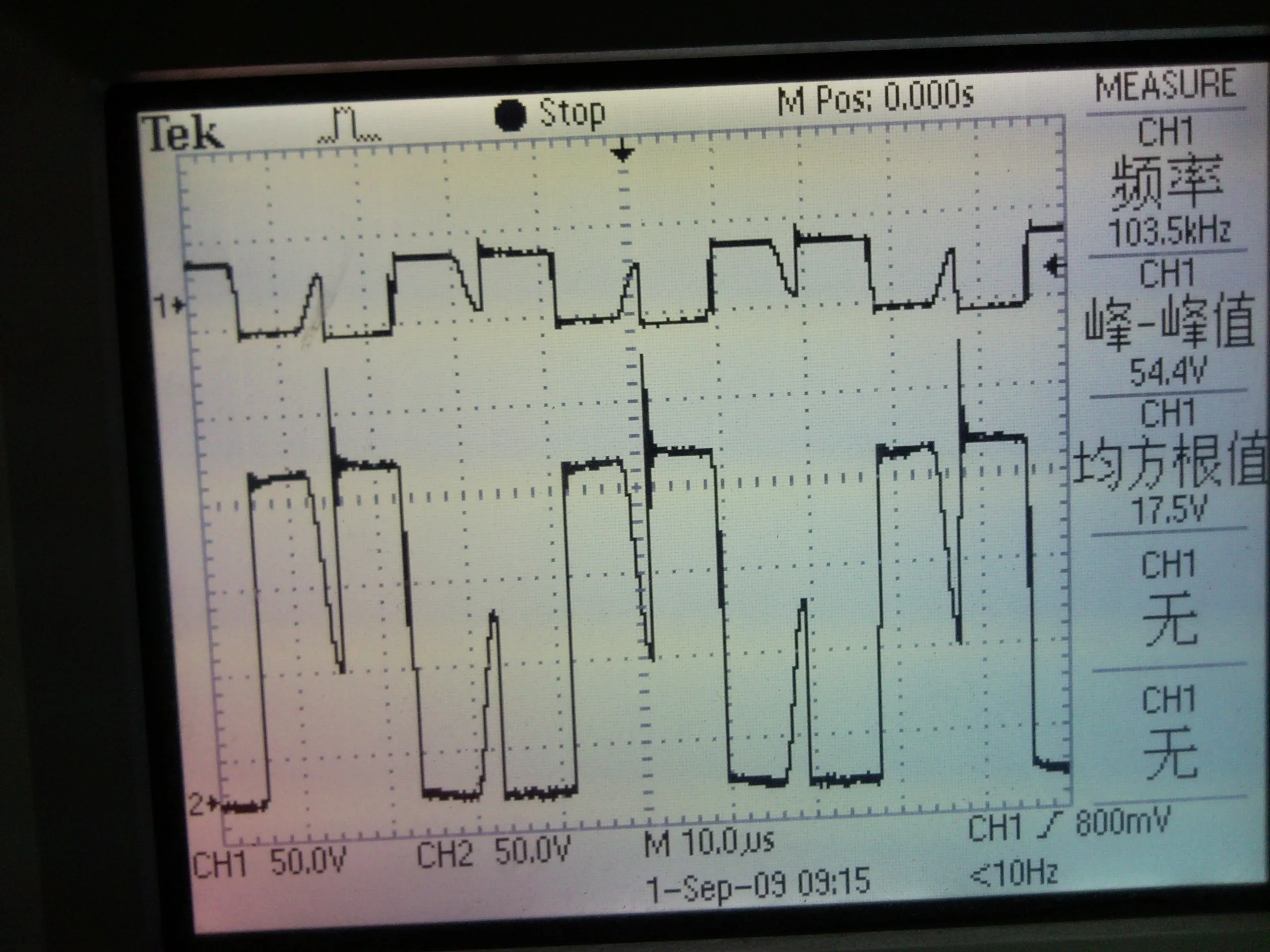

500w時波形,上是初級波形,下為次級波形,
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/81/2461591251768441.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/81/2461591251768363.jpg');}" onmousewheel="return imgzoom(this);">
500w時波形,上是初級波形,下為次級波形,
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/81/2461591251768441.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@liyonghui
500w時波形,上是G極波形,下為次級波形,[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/81/2461591251768363.jpg');}"onmousewheel="returnimgzoom(this);">500w時波形,上是初級波形,下為次級波形,[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/81/2461591251768441.jpg');}"onmousewheel="returnimgzoom(this);">
你將G極推動信號的占空比調到50:50來試試
