求120V UL T5 28W電子鎮流器電路方案(除倍壓電路, APFC電路外)
有誰做過120V T5 28W UL電子鎮流器(不是采用倍壓電路或者APFC電路)? 本人現正在做這個產品,大家有什么好的方案交流一下.
全部回復(17)
正序查看
倒序查看
@snowmo
能否貼出原理圖?

0
回復
@贛南劍客

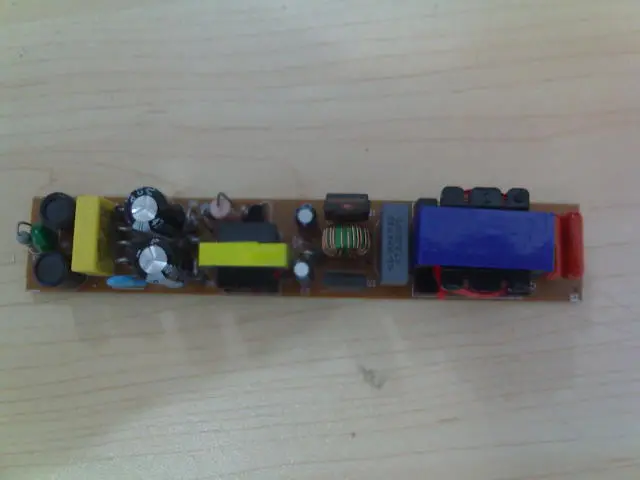

[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/897451238656056.jpg');}"onmousewheel="returnimgzoom(this);">
高手有原理圖嗎
0
回復
@dzss
圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/2932761238989799.png');}"onmousewheel="returnimgzoom(this);">
謝謝樓上高手的無私奉獻.但好像不是上面實物的原理圖.
0
回復
@dzss
圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/2932761238989799.png');}"onmousewheel="returnimgzoom(this);">
你好樓主,中間的變壓器那個4T,4T同名端是一個在上,一個在下?我覺得應該是從Q1柵極繞制4T,然后接著在繞制4T吧
0
回復
@dzss
圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/2932761238989799.png');}"onmousewheel="returnimgzoom(this);">
另外這個圖中,燈管部分是不是直接高壓擊穿啊,是針對普通熒光燈管嗎?
0
回復
@dzss
圖[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖,點擊可放大。\n按住CTRL,滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/76/2932761238989799.png');}"onmousewheel="returnimgzoom(this);">
關注中,期待高手講解原理。
