求:DC12V轉AC220V逆變器圖

求:DC12V轉AC220V逆變器圖 30w 公頻50HZ
因?yàn)橄胱约褐谱?電路圖最好能簡單點.萬分感謝!!!!!!!

全部回復(14)

只看樓主

正序查看

倒序查看

LV.1

2005-06-16 23:09

話題:求:DC12V轉AC220V逆變器圖求:DC12V轉AC220V逆變器圖 30w 公頻50HZ
因?yàn)橄胱约褐谱?電路圖最好能簡單點.萬分感謝!!!!!!!
e-mail ght5456@163.com

回復

zengxianfu

LV.1

2005-06-17 03:06

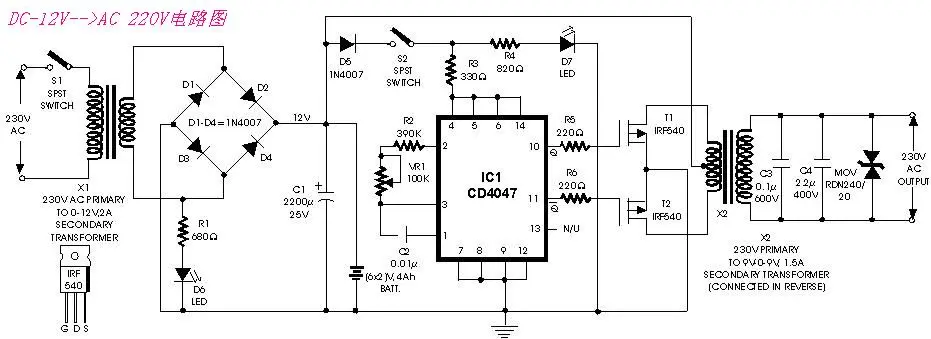

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1118948741.jpg');}" onmousewheel="return imgzoom(this);">

回復

jsysz

LV.2

2005-06-19 15:57

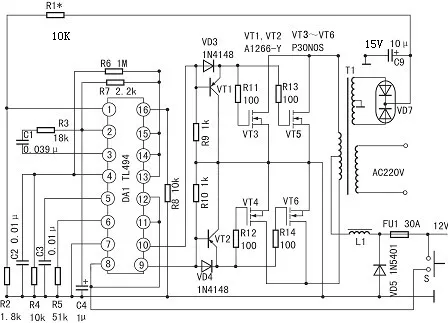

可以自動穩壓的逆變器

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1119167803.jpg');}" onmousewheel="return imgzoom(this);">

回復

jsysz

LV.2

2005-06-19 16:02

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1119168131.gif');}" onmousewheel="return imgzoom(this);">

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1119168139.gif');}" onmousewheel="return imgzoom(this);">

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/30/1119168155.gif');}" onmousewheel="return imgzoom(this);">

回復

stec

LV.3

2006-09-25 23:32

@jsysz

[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1119168131.gif');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1119168139.gif');}"onmousewheel="returnimgzoom(this);">[圖片]500){this.resized=true;this.width=500;this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}"onclick="if(!this.resized){returntrue;}else{window.open('http://u.dianyuan.com/bbs/u/30/1119168155.gif');}"onmousewheel="returnimgzoom(this);">

你好;請樓上說一說工作原理．
