——耦合變壓器設計規格
1. 已知參數:
(1)輸入電壓 Vin=130V Vin(max)=160V Vin(min)=110V
(2)輸出電壓Vout = 130V (120V-150V)
(3)輸出功率:Pout = 25W (25W-30W)
(4)電源效率:η = 85%
(5)開關頻率: Fs(t) = 42KHz (42KHz-45KHz)
(6)占空比: Dmax = 1.2us
(7)線路主開關管的耐壓:V mos = 600V (采用SSP7N60B管)
(8)采用IR2151驅動芯片
(9)變壓器骨架EE25或EE28鐵氧體鐵心
(10)整機的工作電流0.3A-0.5A
(11)變壓器應承受2000V耐壓60s,漏電距離2.5mm-3mm.
負載——超聲波換能器參數:
額定功率(W):≥30W
諧振頻率(KHz):45KHz±10% 裝貼后工作均為42 KHz
諧振阻抗(Ω):1Ω±10%
電容量(PF):8000-10000PF
工作電壓:120-150V
耐壓:3000V
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
幫我設計個變壓器吧,我再做設計時用到,但一點都不懂.
全部回復(2)
正序查看
倒序查看
大家?guī)臀翼敯?

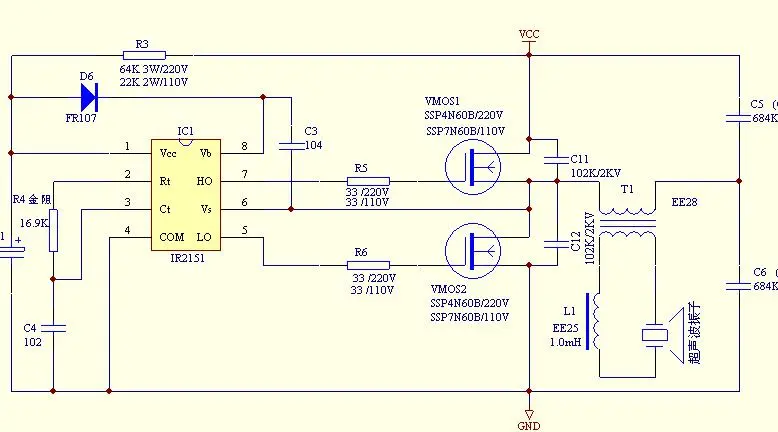

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/68/1787231219798397.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/68/1787231219798397.jpg');}" onmousewheel="return imgzoom(this);"> 0
