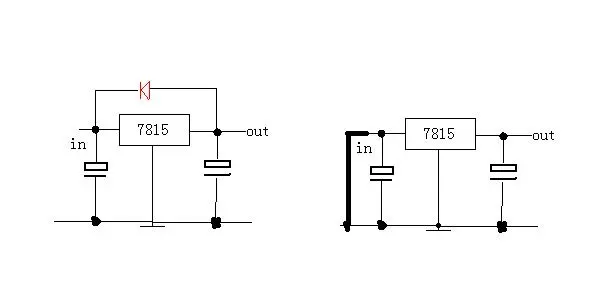

把所有元件畫出來就比較明確.
正常工作時,輸出端有15V電壓,輸入短路時in端變?yōu)?電壓,輸出端電容上的電壓沒那么快放完,所以就會有反向的15V電壓.
有了這個二極管給輸出電容放電,兩端反向電壓差不會高于二極管正向電壓.
一般輸出電容也要選小些.
